The multi_voids like a system to create complex spaces.
The city Teheran has a clear urban net. The proposal interprets this condition.
The analysis of the multi_store building programme shows a percent process to get the diferent areas.
Why dont use these conditions – urban net and percent system - to generate architecture?

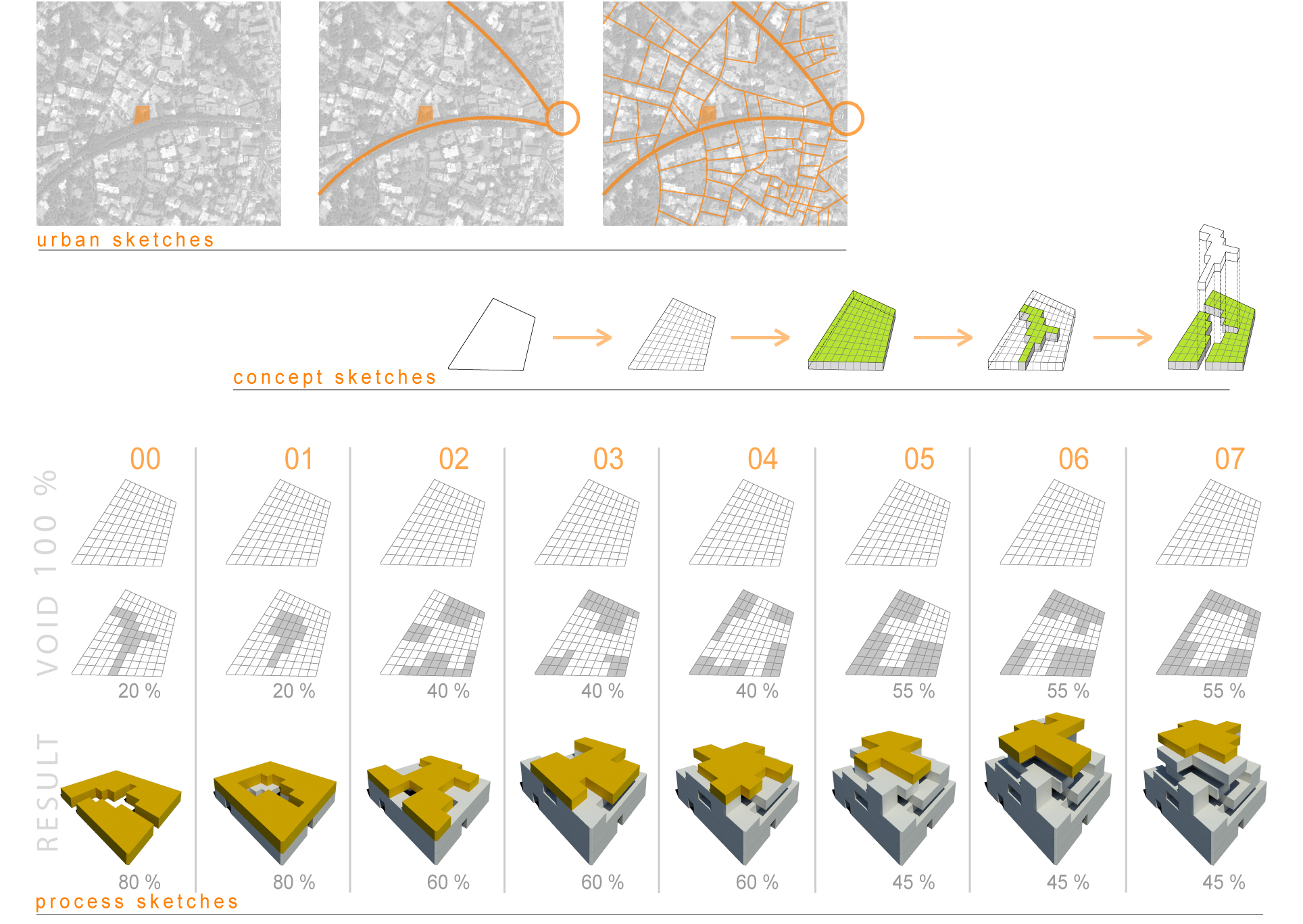

It´s a architecture game. It starts to take the area plot; then is divided between 100 sides and it ´s extruded. Each floor should be substrated a defined number of voids. It depends on its funtion and programme level.
Do you want to play?

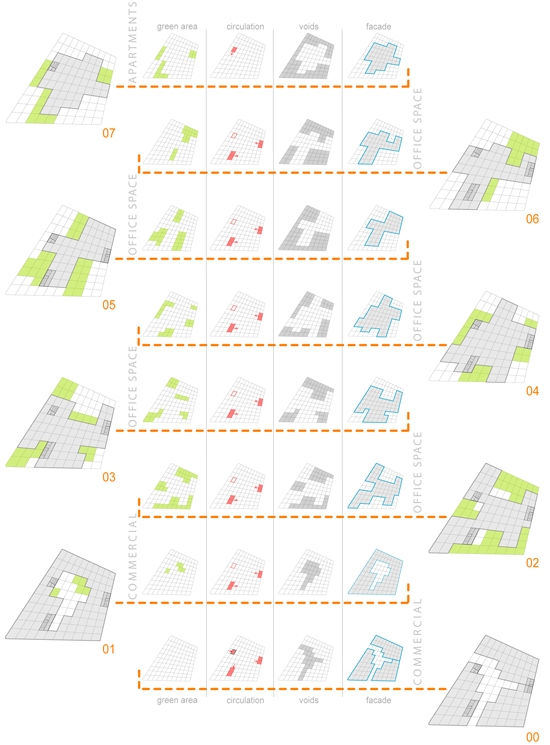

There are three mains multi_store funtions: commercial, office spaces and housing. Each one have a specifics ways to entrance. The commercial units has inside a own free link. There are two specific vertical circulations to access to the office floors; and one private vertical connection to enter to the appartments.

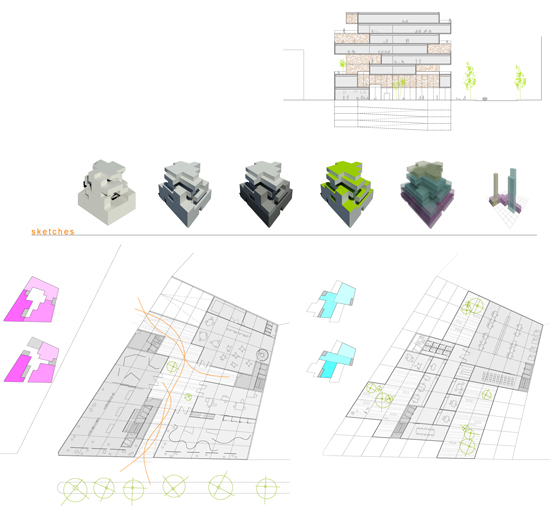

The commercial floors – ground level and first level – are designing to take the maximum showing surface. The voids in the centre of the plot create multi_possibilities to show the product and also generate a new open way that crossing the building.

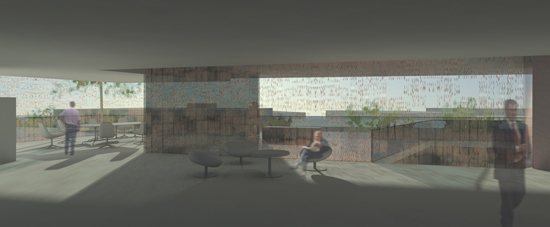

The office spaces and the appartments in the top of the building – second to seventh floors – has been configurated to catch as much as possible all daylight; because it´s important to work and also a natural method to save energy. The office spaces try to opened to the city through the multi_terraces and green areas. These generate relations between different levels.

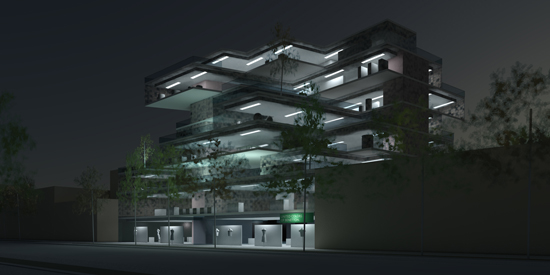

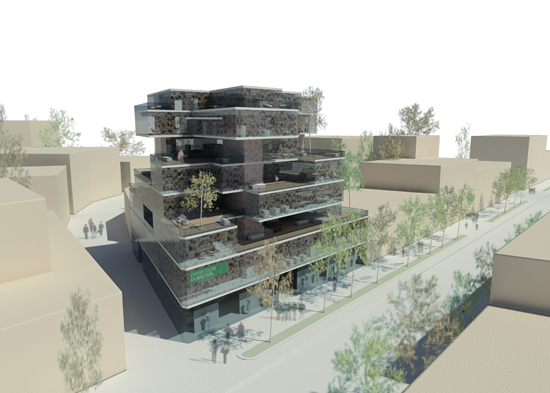

The result of this game is a dynamic piece that everyone should walk around it. E
ach perpective is different, each fachade is different....
Then we start to discover it........ |
